Açıklama

  • 4 Quadran
    Regenerative FunctionIdeal for EUT with grid tie function
  • Phase Angle
    Phase Angle Adjustment Capable to simulate phase angle bewteen each phase
  • STEP & RAMP
    STEP and RAMP FeaturesFor easy voltage and frequency programming
  • LVRT
    Low Voltage Ride ThroughIdeal for IEEE-1547 pre-compliance test
  • Reliable & Robust
    Comprehensive ProtectionIncluding OVP, OCP, OTP, emergency stop and etc.
  • 7 inches
    Intuitive Touch ScreenEasy monitoring and control
Regenerative Function

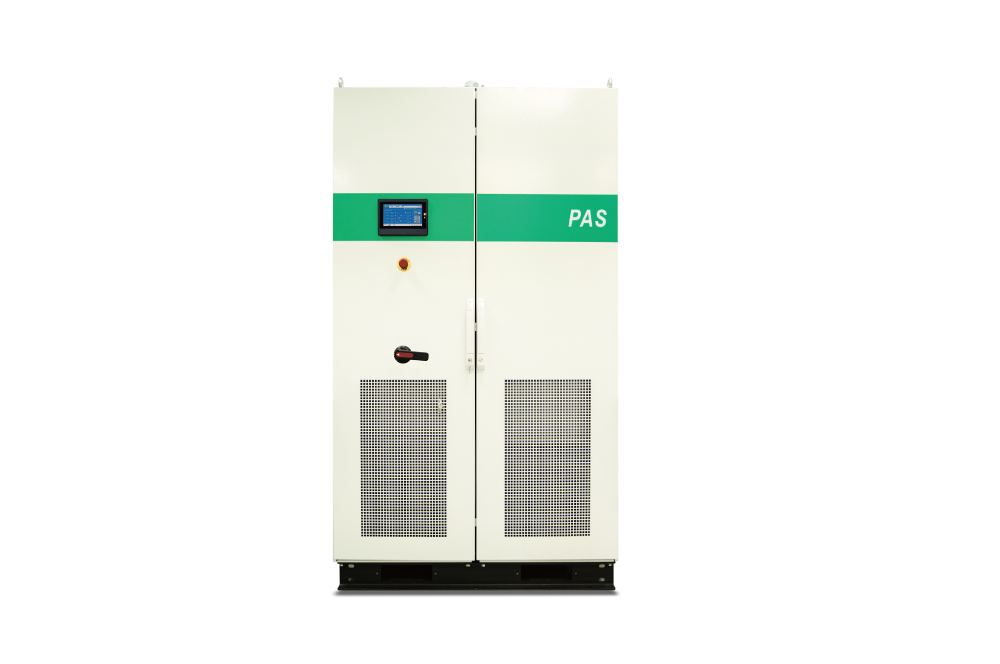

PAS series is a four-quadrant AC power source which is capable to be a power source or sink the power from the EUT back to the grid system with 90% efficiency. It is suitable for PV Inverter test, EV charger test or other grid tie devices test. Build in with Low Voltage Ride Through (LVRT) test graph and it is very suitable for IEEE-1547 or BDEW related standards compliance test.

Low Voltage Ride Through (LVRT)

Built-in Low Voltage Ride Through (LVRT) mode can simulate the grid in abnormal conditions. The settings include rated voltage, frequency, drop voltage, recovery voltage, rise time and drop time to simulate various grid conditions.
