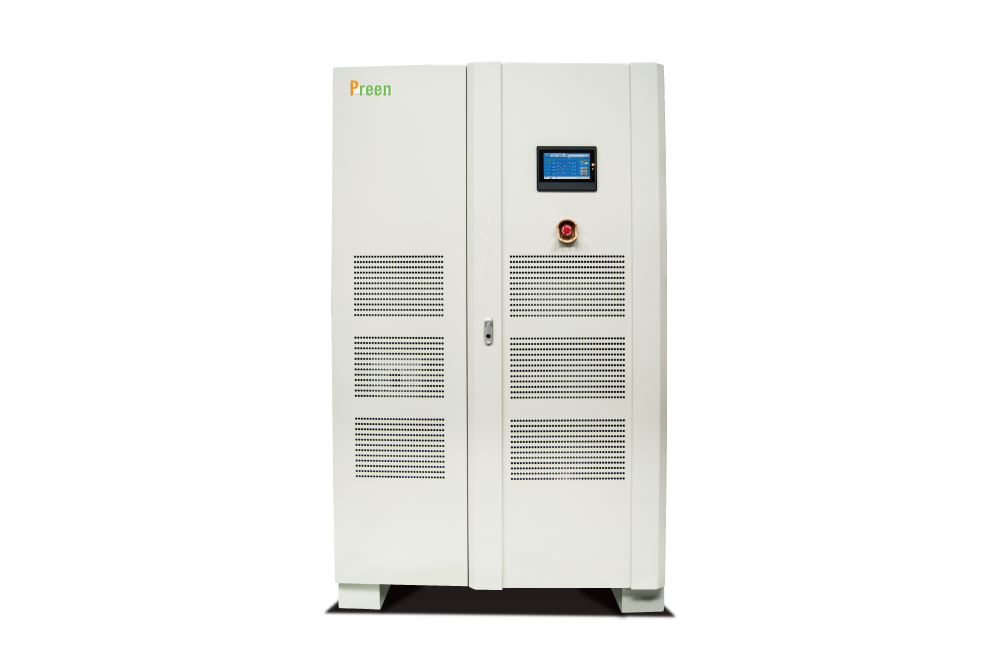

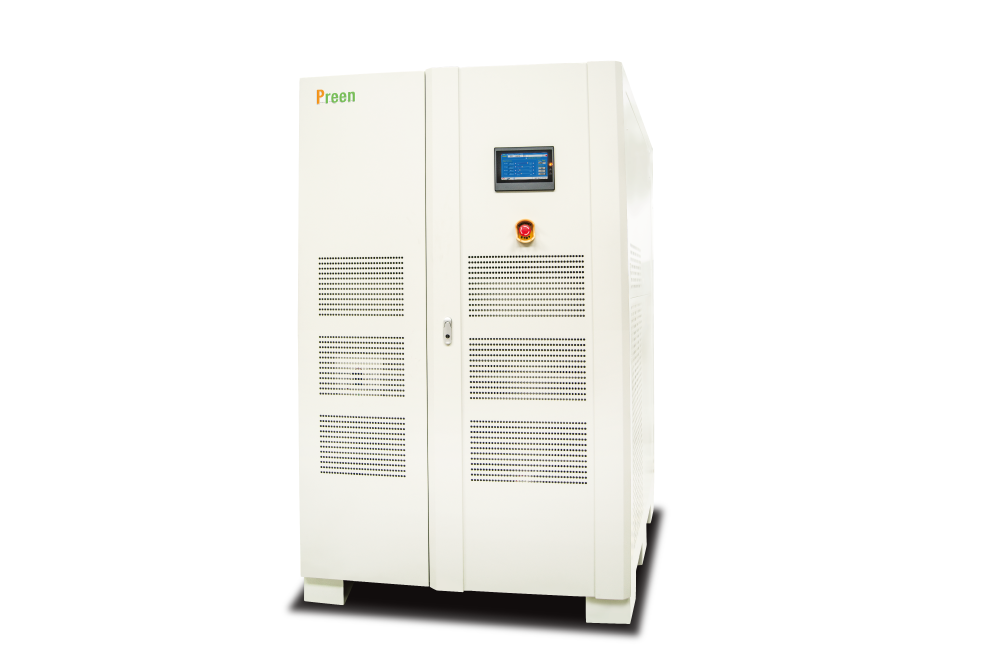

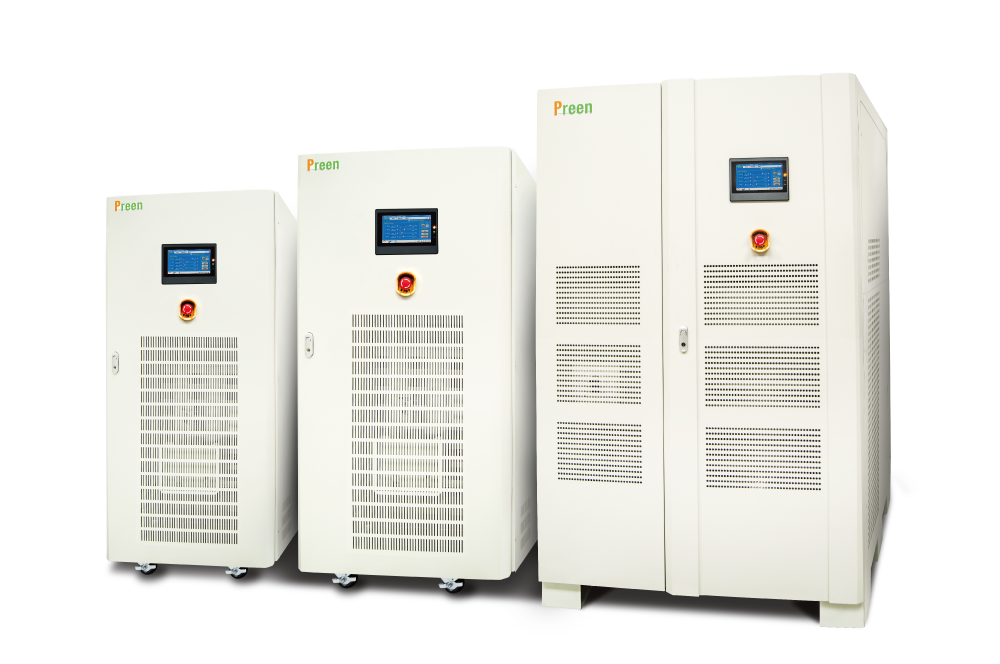

The AFV is a series of programmable AC power source that can be remote controlled and integrated with other systems for easier operation. Applications include home appliance, electronic, medical equipment, lighting, and etc. With better accuracy and faster response time, the AFV series offers greater advantage for R&D and compliance tests. Utilized PWM switching technology, AFV provides high quality pure sine waveform with output level up to 2,000kVA. The AC source is coupled with output voltage range of 0~300V and output frequency of standard 45~65Hz or optional 45~500Hz. Users can select communication interfaces of RS-485, RS-232, and optional GPIB. The AFV series also have programming sequence functions of STEP and GRADUAL modes, three phase independent control, and soft start for optional choices.
With the 7-inch touch screen, the AFV series provides an intuitive and easy operation. Through the remote control interface (RS-485 / RS-232 / GPIB / Ethernet), users can set the desired output parameters and monitor the output value.
With its high reliability, capability of complex power line simulation and high output power, the AFV series has been widely applied for applications on home appliance, electric vehicle charger, motor, electronics and medical equipment. It is a AC power source suitable from R&D verification to mass production testing.
The AFV＋ series is a high power programmable AC power source utilizing advanced PWM technology to deliver power with THD ≦ 0.5% and up to 2000kVA.
The output frequency is 45~65Hz with accuracy of ± 0.02%, and user can select 45~500Hz option to expand the frequency. The AFV＋series is ideal to simulate different region’s voltage and frequency conditions, and can cover applications for home appliance, motor, medical equipment, lighting and EMC laboratory.
GS820 Çok Kanallı Kaynak Ölçer, LED aydınlatmayı test etmek, drenaj akımını ölçmek ve daha fazlası için 18 volt ve 50 volt modellerde gelir. Her biri sabit voltaj kaynağı, sabit akım kaynağı, voltmetre ve ampermetre ile izole edilmiş iki analog kanalı vardır. Yokogawa kaynak ölçüm birimi olan GS820, iki tarama işlevi, USB üzerinden PC bağlantısı ve 10 kanala kadar genişletme sunar.
JAPON MALI
AMV/AMF series are ground power unit which special designed for aviation and military industry. It compliant with MIL-STD-704F and it has stand-alone or trailer model available for different applications.
The output voltage of AMV/AMF series is 115 / 200V or 115 / 200V ± 15% which is easy for voltage adjustment. They provide 400Hz fixed or 300-500Hz adjustable output frequency and with robust overload capacity which is suitable for airport, test flight station, aircraft maintenance station, hangar, product assembly line and other places.
GS200, yüksek doğruluk, yüksek kararlılık ve yüksek çözünürlüğe sahip bir düşük voltaj/akım DC kaynağıdır. Mükemmel izlenebilirliği, kararlılığı ve 5 1/2 basamaklı çözünürlüğü ile GS200, birçok uygulama için gerekli olan son derece düşük gürültülü DC voltaj ve akım sinyalleri üretir. Ek olarak, isteğe bağlı izleme özelliği, GS200’ü bir voltaj ve akım ölçüm cihazına dönüştürür.
JAPON MALI
PAS Series product is developed for renewable energy related applications. It can simulate the various grid conditions and related test standards. Especially the voltage or frequency transient simulation test feature, it is suitable for production, quality verification, research and development.It also builds in with Low Voltage Ride Through Test (LVRT) test function, step mode and gradual mode programmable capability.
